Products

Fully vinyl insulated disconnects

Product name：Fully vinyl insulated disconnects

Item：WF

Details：

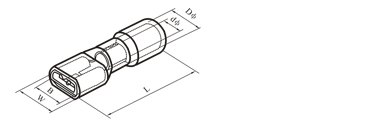

Fully vinyl insulated disconnects

0.5～1.5mm²(22-16) Imax=10A

ITEM.NO.	MEMA TAB(mm)	DIMENSION
ITEM.NO.	MEMA TAB(mm)	W(mm)	B(mm)	D Ф(mm)	d Ф(mm)	L(mm)
FDFD1.25-187(5)	0.5×4.75	5.6	5.0	4.0	1.7	20.0
FDFD1.25-187(8)	0.8×4.75	5.6	5.0	4.0	1.7	20.0
FDFD1.25-250	0.8×6.35	7.4	6.6	4.0	1.7	21.5

1.5～2.5mm²(16-14) Imax=15A

ITEM.NO.	MEMA TAB(mm)	DIMENSION
ITEM.NO.	MEMA TAB(mm)	W(mm)	B(mm)	D Ф(mm)	d Ф(mm)	L(mm)
FDFD2-187(5)	0.5×4.75	5.6	5.0	4.5	2.3	20.0
FDFD2-187(8)	0.8×4.75	5.6	5.0	4.5	2.3	20.0
FDFD2-250	0.8×6.35	7.4	6.6	4.5	2.3	21.5
