Insulated cord end terminals |
|
|
| Product name：Insulated cord end terminals |
| Item：WF |
| Details： |

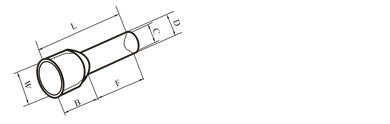

Insulated cord end terminals
| TEM.NO. |
DIMENSION |
CLNLE SQ |
INSULATION COLOR |
| F(mm) |
L(mm) |
W(mm) |
B(mm) |
D(mm) |
C(mm) |
A.W.G |
mm2 |
| E0506 |
6.0 |
12.0 |
2.6 |
6.0 |
1.3 |
1.0 |
#22 |
0.5 |
Oranage
White
|
| E0508 |
8.0 |
14.0 |
| E0510 |
10.0 |
16.0 |
| E0512 |
12.0 |
18.0 |
| E7506 |
6.0 |
12.4 |
2.8 |
6.4 |
1.5 |
1.2 |
#20 |
0.75 |
White
blue
|
| E7508 |
8.0 |
14.6 |
| E7510 |
10.0 |
16.4 |
| E7512 |
12.0 |
18.4 |
| E7518 |
18.0 |
24.4 |
| E1006 |
6.0 |
12.4 |
3.0 |
6.4 |
1.7 |
1.4 |
#18 |
1.0 |
Yellow
red
|
| E1008 |
8.0 |
14.6 |
| E1010 |
10.0 |
16.4 |
| E1012 |
12.0 |
18.4 |
| E1508 |
8.0 |
14.6 |
3.5 |
6.4 |
2.0 |
1.7 |
#16 |
1.5 |
Red
black
|
| E1510 |
10.0 |
16.4 |
| E1518 |
18.0 |
24.4 |
| E2508 |
8.0 |
15.2 |
4.0 |
7.0 |
2.6 |
2.3 |
#14 |
2.5 |
Blue
grey
|
| E2512 |
12.0 |
19.0 |
| E2518 |
18.0 |
25.0 |
| E4009 |
9.0 |
16.5 |
4.4 |
7.5 |
3.2 |
2.8 |
#12 |
4.0 |
Grey
Oranage
|
| E4012 |
12.0 |
19.5 |
| E4018 |
18.0 |
25.5 |
| E6012 |
12.0 |
20.0 |
6.3 |
8.0 |
3.9 |
3.5 |
#10 |
6.0 |
Black
green
|
| E6018 |
18.0 |
26.0 |
| E10-12 |
12.0 |
21.5 |
7.6 |
9.5 |
4.9 |
4.5 |
#7 |
10.0 |
Milky white
brown green
|
| E10-18 |
18.0 |
27.5 |
| E16-12 |
12.0 |
22.2 |
8.8 |
10.2 |
6.2 |
5.8 |
#5 |
16.0 |
Green
Milkty white
|
| E16-18 |
18.0 |
28.2 |
| E25-16 |
16.0 |
29.0 |
11.2 |
13.0 |
7.9 |
7.5 |
#4 |
25.0 |
brown green
black
|
| E25-22 |
22.0 |
35.0 |
| E35-16 |
16.0 |
30.0 |
12.7 |
14.0 |
8.7 |
8.3 |
#2 |
35.0 |
Greyish brown |
| E35-25 |
25.0 |
39.0 |
| E50-20 |
20.0 |
36.0 |
15.3 |
16.0 |
10.9 |
10.3 |
#1 |
50.0 |
Olive |
| E50-25 |
25.0 |
41.0 |
|
|
|
 |
