Products

Insulated bullet & receptacle disconnects
Insulated bullet & receptacle disconnects Insulated bullet & receptacle disconnects
Product name：Insulated bullet & receptacle disconnects
Item：WF
Details：

Insulated bullet & receptacle disconnects



0.5～1.5mm2(22-16) Imax=10A

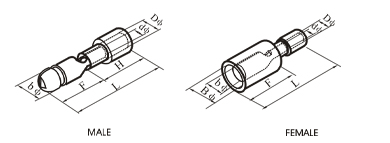

ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
MPD1.25-156 0.4 4.0 11.0 2.7 1.7 10.0 21.0 Red
1.5～2.5mm2(16-14) Imax=15A
ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
MPD2-156 0.4 4.0 16.0 2.7 1.7 10.0 21.0 blue
MPD2-195 0.4 5.0 16.0 2.7 1.7 10.0 21.0
4～6mm2(12-10) Imax=24A
ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
MPD5.5-195 0.4 4.0 11.0 4.5 3.4 14.0 25.0 yellow
0.5～1.5mm2(22-16) Imax=10A
ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
FRD1.25-156 0.4 4.0 16.0 2.7 1.7 13.0 24.5 Red
1.5～2.5mm2(16-14) Imax=15A
ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
FPD2-156 0.4 4.0 6.3 3.3 2.3 14.0 24.5 blue
FPD2-195 0.4 5.0 7.0 3.3 2.3 14.0 24.5
4～6mm2(12-10) Imax=24A
ITEM.NO. Thickness of material(mm) DIMENSION COLOR
b Ф(mm) F(mm) D Ф(mm) d Ф(mm) H(mm) L(mm)
MPD5.5-195 0.4 5.0 7.0 4.5 3.4 14.0 29.5 yellow
