Products

Piggy back disconnects

Piggy back disconnects Piggy back disconnects
Product name:Piggy back disconnects
Item:WF
Details:
Piggy back disconnects


0.5~1.5mm2(22-16) Imax=10A

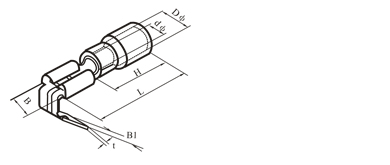

ITEM.NO. MEMA TAB T(mm) DIMENSION
B(mm) B1(mm) B(mm) D Ф(mm) d Ф(mm) L(mm)
PBDD1.25-250 0.8×6.35 7.4 6.3 10.0 3.8 1.7 21.5
1.5~2.5mm2(16-14) Imax=15A
ITEM.NO. MEMA TAB T(mm) DIMENSION
B(mm) B1(mm) B(mm) D Ф(mm) d Ф(mm) L(mm)
PBDD2-250 0.8×6.35 7.4 6.3 10.0 4.3 2.3 21.5
4~6mm2(12-10) Imax=24A
ITEM.NO. MEMA TAB T(mm) DIMENSION
B(mm) B1(mm) B(mm) D Ф(mm) d Ф(mm) L(mm)
PBDD5.5-250 0.8×6.35 7.4 6.3 14.0 5.7 3.4 25.0
