Products

Insulated male disconnects

Insulated male disconnects Insulated male disconnects
Product name:Insulated male disconnects
Item:WF
Details:
Insulated male disconnects


0.5~1.5mm2(22-16) Imax=10A

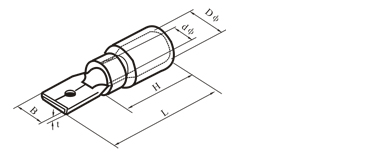

ITEM.NO. MEMA TAB(mm) Thickness of material(mm) DIMENSION
B(mm) d Ф(mm) D Ф(mm) L(mm) H(mm)
MDD1.25-110(8) 0.8×2.8 0.8 2.8 1.70 4.3 17.7 10.0
MDD1.25-187(5) 0.5×4.75 0.5 4.75 1.70 4.3 20.0
MDD1.25-187(8) 0.8×4.75 0.8 4.75 1.70 4.3 18.5
MDD1.25-250 0.8×6.35 0.4 6.35 1.70 4.3 21.0
1.5~2.5mm2(16-14) Imax=15A
ITEM.NO. MEMA TAB(mm) Thickness of material(mm) DIMENSION
B(mm) d Ф(mm) D Ф(mm) L(mm) H(mm)
MDD2-187(5) 0.5×4.75 0.5 4.75 2.3 4.3 20.0 10.0
MDD2-187(8) 0.8×4.75 0.8 4.75 2.3 4.3 18.5
MDD2-250 0.8×6.35 0.4 6.35 2.3 4.3 21.0
4~6mm2(12-10) Imax=24A
ITEM.NO. MEMA TAB(mm) Thickness of material(mm) DIMENSION
B(mm) d Ф(mm) D Ф(mm) L(mm) H(mm)
MDD5.5-250 0.8×6.35 0.4 6.35 3.4 5.7 25.0 14.0
