Nylon cable glands(PG) |
|
|
| Product name：Nylon cable glands(PG) |
| Item：WF |
| Details： |
Nylon cable glands(PG)
· Material：made from UL Nylon 66, 94V-2 and tight ring from rubber.
· Feature：
1.Special designation, good strengthsile and none damage to electrical machine.
2.not need to dismetgrate the fix terminal, cable can be inserted throug directly then tighten easy and save time.
· Application：used for machinery control box, distribution plate, machine and electrical, etc.

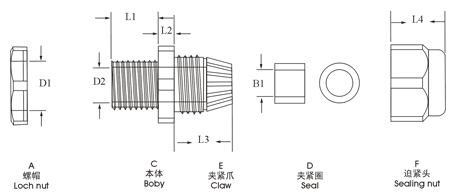

| ITEM.NO. |
D1 |
D2 |
L1 |
L2 |
L3 |
L4 |
B1 |
Cable range |
| PG-07 |
12.0 |
8.1 |
9 |
5 |
15 |
14.0 |
6.4 |
3.5-6 |
| PG-09 |
16.0 |
11.0 |
9 |
5 |
15 |
16.0 |
8.6 |
4-8 |
| PG-11 |
17.9 |
13.0 |
9 |
5 |
18 |
18.0 |
10.7 |
5-10 |
| PG-13.5 |
20.2 |
15.0 |
9 |
5 |
20 |
19.0 |
13.3 |
6-12 |
| PG-16 |
22.0 |
17.0 |
11 |
5 |
20 |
19.0 |
14.3 |
10-14 |
| PG-19 |
24.0 |
19.0 |
11 |
5 |
22 |
21.0 |
15.5 |
12-15 |
| PG-21 |
26.9 |
21.8 |
11 |
6 |
24 |
22.0 |
16.7 |
13-18 |
| PG-24 |
29.8 |
24.0 |
13 |
7 |
24 |
24.0 |
19.2 |
15.22 |
| PG-29 |
36.0 |
28.0 |
13 |
7 |
25 |
24.0 |
24.8 |
18-25 |
| PG-36 |
45.7 |
39.0 |
15 |
8 |
32 |
27.0 |
30.7 |
22-32 |
| PG-42 |
54.0 |
46.0 |
15 |
8 |
33 |
29.0 |
35.6 |
30-38 |
| PG-48 |
59.0 |
51.0 |
16 |
8 |
36 |
30.0 |
41.4 |
34-44 |
| PG-63 |
71.0 |
63.5 |
28 |
9 |
45 |
44.0 |
55 |
42-54 |
|
 |
 |
