Cable glands With STRAIN RELIEF |
|
|
| Product name：Cable glands With STRAIN RELIEF |
| Item：WF |
| Details： |

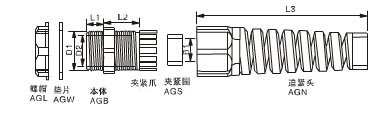

Cable glands With STRAIN RELIEF
| ITEM.NO. |
D1 |
mm |
D2 |
B1 |
L1 |
L2 |
L3 |
Cable Range |
| |
| MGS-12 |
12 |
1.25 |
8.3 |
6.0 |
7.9 |
12.1 |
53.3 |
3～6.5 |
| M18×1.5 |
16 |
1.5 |
10.9 |
9.6 |
14.4 |
14.4 |
74.4 |
53～10 |
| M20×1.5 |
20 |
1.5 |
14.8 |
14.5 |
12.8 |
19.5 |
96.2 |
10～14 |
| M22×1.5 |
25 |
1.5 |
18.5 |
16.5 |
13.9 |
19.5 |
111.2 |
13～18 |
| |
| PGS-7 |
12.2 |
|
8.0 |
6.0 |
8.0 |
12.8 |
53.3 |
3～6.5 |
| PGS-9 |
15.0 |
|
9.9 |
7.0 |
8.1 |
13.9 |
62.5 |
4～8 |
| PGS-11 |
18.2 |
|
13.2 |
9.6 |
8.2 |
15.4 |
74.9 |
5～10 |
| PGS-13.5 |
20.2 |
|
15.2 |
11.7 |
8.9 |
15.8 |
85.5 |
6～12 |
| PGS-16 |
22.2 |
|
17.2 |
14.5 |
8.9 |
17.3 |
96.2 |
10～14 |
| PGS-21 |
28.1 |
|
22.4 |
16.5 |
10.8 |
18.6 |
111.2 |
13～18 |
|
 |
 |
