Nylon cable glands(MG) |
|
|
| Product name：Nylon cable glands(MG) |
| Item：WF |
| Details： |
Nylon cable glands(MG)
· Threaded entry：Metric
· Color ：black and grey
· Working temperature：-40℃-100℃，the item can also endure 120℃ instantly
· protection：IP68
· Standard：IEC698

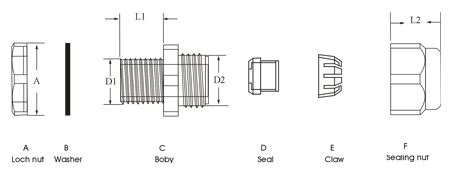

| ITEM.NO. |
Threaded entry metric(mm) |
Cable rangeФ(mm) |
D1 |
D2 |
Panel mounting hole(mm) |
L1 |
L2 |
A(mm) |
| MG-12 |
M12×1.25 |
7.6-4.6 |
12 |
M16×1.5 |
12.5 |
8.5 |
16 |
19 |
| MG-16 |
M16×1.5 |
10-6 |
16 |
M20×1.5 |
16.5 |
15 |
19.5 |
24 |
| MG-20 |
M20×1.5 |
14-9 |
20 |
M25×1.5 |
20.5 |
15 |
21.5 |
30 |
| MG-25 |
M25×1.5 |
18-13 |
25 |
M31×2 |
25.5 |
15 |
24.5 |
36 |
| MG-32 |
M32×1.5 |
25-18 |
32 |
M38×2 |
33 |
15 |
27.5 |
46 |
| MG-40 |
M40×1.5 |
30-24 |
40 |
M46×2 |
41 |
20 |
31 |
54 |
| MG-50 |
M50×1.5 |
39-30 |
50 |
M58×2 |
51 |
23 |
37 |
67 |
| MG-63 |
M63×1.5 |
48.5-40 |
63 |
M72×2 |
64 |
24 |
42 |
81.5 |
|
 |
 |
