Screw on wire connectors |
|
| Product name：Screw on wire connectors |
| Item：WF |
| Details： |
|
Screw on wire connectors
|
|
· Material：UL Nylon 66 , with spring inside.
· Usage：peel wire coat, insert the wire in, then tighten.

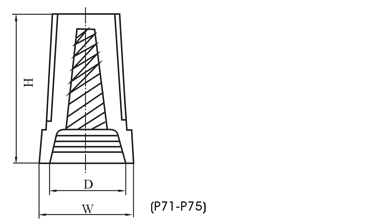

| ITEM.NO. |
H(mm) |
W(mm) |
D(mm) |
SUITABLE WIRES |
COLOR |
| WF-P71 |
15 |
8.5 |
6.5 |
MIN#20×1+#22×1
MAX#16×2
|
Grey |
| WF-P72 |
18 |
10 |
7.5 |
MIN#20×3
MAX#16×3 |
Blue |
| WF-P73 |
20 |
11.5 |
9.5 |
MIN#20×3
MAX#16×3+#18×1 |
Orange |
| WF-P74 |
23.5 |
13.5 |
10.8 |
MIN#14×1+#18×1
MAX#14×4+#18×1 |
Yello |
WF
| -P75 |
23.5 |
15.5 |
12.7 |
MIN#14×2
MAX#10×2+#12×2 |
Red |
 |
|
|
 |
