Safety-type wire joints
|
|
· Shell material: Nylon 66, 94V-2, certificated agree, by UL.
· Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
· Feature: Nylon shell , long copper tube , easy to conduct electricity and hold wire tightly.

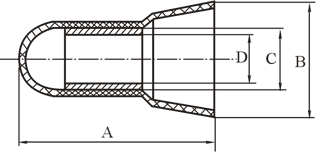

| ITEM.NO. |
A(mm) |
W |
D(mm) |
mm2 |
SUITABLE WIRES |
| B(mm) |
C(mm) |
AMG |
| WF-Ф3 |
18 |
9 |
3.6 |
2.8 |
1.25 |
22-16 |
| WF-Ф4 |
21 |
9.5 |
3.9 |
3 |
2 |
16-14 |
| WF-Ф5 |
22.5 |
10.5 |
4.8 |
4 |
5.5 |
12-10 |
| WF-Ф6 |
24 |
12 |
5.6 |
4.8 |
8 |
8 |
| WF-Ф7 |
25.5 |
13 |
6.5 |
5.5 |
10 |
8-6 |
| WF-Ф8 |
25.5 |
14 |
7.5 |
6 |
13 |
6 |
| WF-Ф10 |
29.5 |
15.5 |
9.3 |
7.8 |
16 |
4 |
 |
| |
|
|
