Summarize and trait:

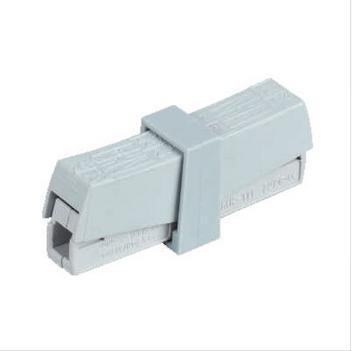

the WFPCT-201 series connectors can be used in other applications using solid
and stranded conductors. For example other applications could be:
Automated blinds or awnings
Window or bathroom fans
Boiler controller
Tight connections of electrical devices with stranded conductors
Circulating pumps etc...
Detailed parameters:
| Model |
Flexible lead |
Rigidity lead |
Conncction method |
Current |
Voltage |
Color |
| WFPCT-201 |
0.5-2.5(mm²)
20-16(AWG) |
1-2.5(mm²)
14-12(AWG) |
Cage clamp® connection |
24A |
400V |
Grey |
Description and operation:
